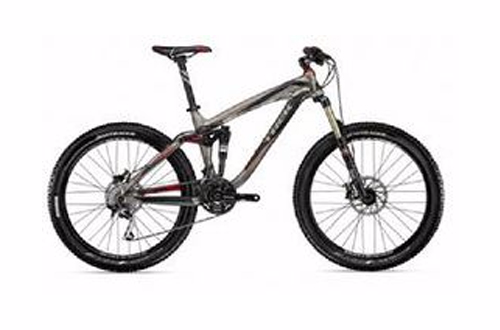

车架组

尺寸 15.5, 17.5, 19.5, 21.5" 车架 Alpha Red Aluminum w/ABP Convert, Full Floater, E2 tapered head tube, magnesium EVO Link, oversized pivot bearings, ISCG03 mounts, replaceable derailleur hanger, 150mm travel

前叉 Fox 32 Talas RL w/air spring, lockout, rebound, alloy E2 tapered steerer, 15QR, 120-150mm travel adjust 整车

轮组

轮组 Bontrager alloy 15mm front hub, Shimano alloy M525 rear hub; Bontrager Duster 32-hole rims [1]

外胎 Bontrager XR3 Expert, 26x2.3"

传动系统

变速器 Shimano SLX, 10 speed

前拨 Shimano SLX

后拨 Shimano Deore XT

曲柄 Shimano M552, 42/32/24

飞轮Shimano HG8110 11-36, 10 speed

脚踏 n/a

组件

坐垫 Bontrager Evoke 2, chromoly rails

座桿 Bontrager, 31.6mm, 20mm offset

把横 Bontrager Low Riser, 31.8mm, 25mm rise, 9 degree sweep

把立 Bontrager Rhythm, 31.8mm

头管组 FSA NO.57E, E2, ACB sealed bearings

剎车系统 Avid Elixir 5 hydraulic disc brakes

n/a

其他 Trek fork and shock sag meter, Bontrager shock pump
